Custom Salt Spray Test Chamber for Automotive Corrosion Testing

Brand Name:	PRECISION
Model Number:	SSC-60
MOQ:	1
Price:	$6000
Payment Terms:	T/T
Supply Ability:	100/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Carrier Dimensions(cm) (L X W X H):

60×45×40

Test Room Temperature:

Salt Water Test Method (NSS ACSSS) 35°C±1°C; Corrosion Test Method (CASS) 50°C±1°C

Pressure Barrel Temperature:

Salt Water Test Method (NSS ACSSS) 35°C±1°C; Corrosion Test Method (CASS) 50°C±1°C

Volume (L):

108

Salt Water Volume (L):

15L

Warranty:

12 Months

Compressed Air Pressure (Kgf):

1.0 - 6.0

Spray Amount:

1.0 - 2.0ml/80cm²/h (collect At Least 16 Hours, Average Value)

Spray Method:

Continuous Or Programmable

Packaging Details:

Standard export packaging

Supply Ability:

100/month

Highlight:

custom environmental test chambers

custom fast change rate chambers

Product Description

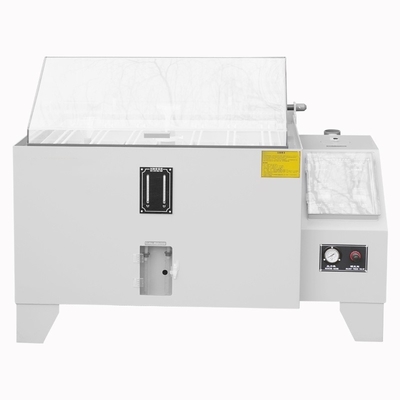

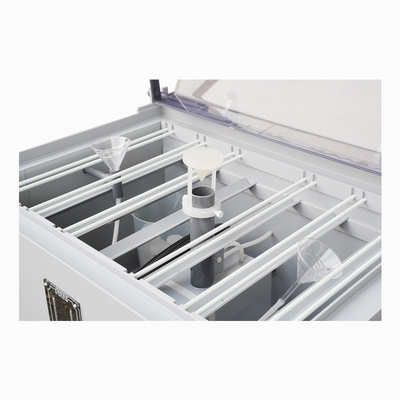

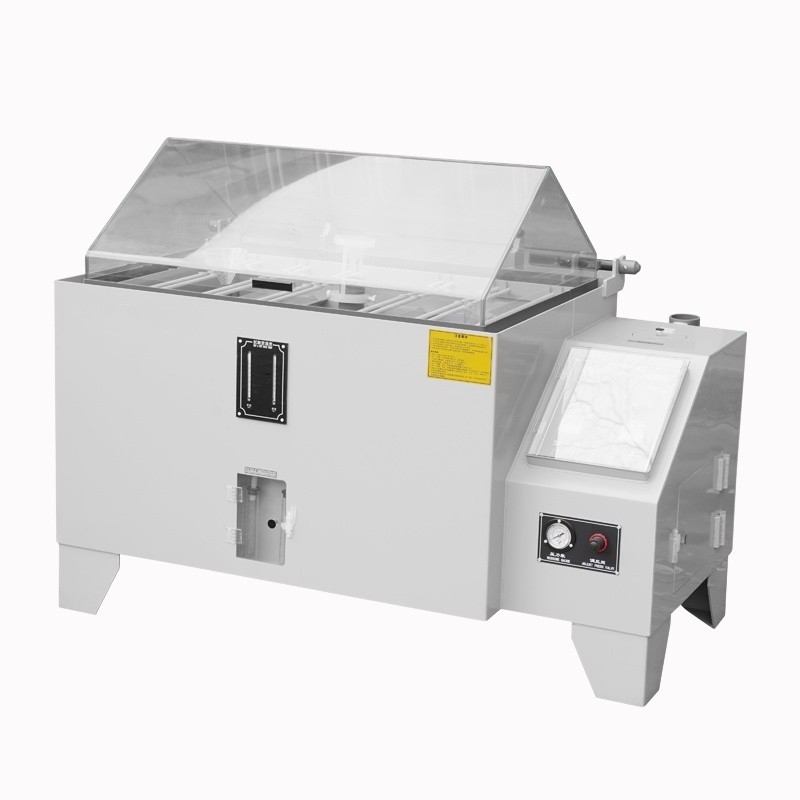

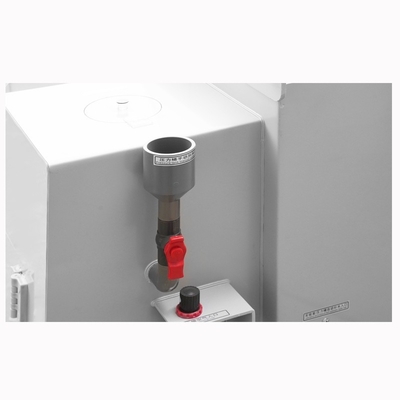

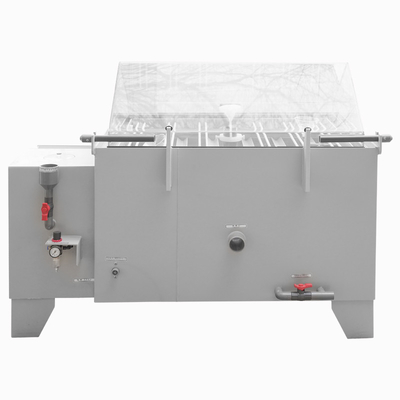

Custom Salt Spray Test Chamber for Automotive Corrosion Testing

Product Description:

Our custom-engineered salt spray test chambers are specifically designed to meet the demanding corrosion testing requirements of the automotive industry. These chambers provide a controlled and accelerated corrosive environment to evaluate the resistance of automotive materials, coatings, and components to salt spray, humidity, and temperature. Ensure the long-term durability and prevent premature corrosion of your automotive products with our tailored testing solutions.

Key Features:

Tailored Customization: Chambers built to your specific testing needs, including
size, spray parameters, temperature and humidity control, and test duration.
Automotive Standards Compliance: Designed to meet or exceed relevant automotive industry standards (ASTM B117, ISO 9227, etc.) for salt spray testing.
Precise Control: Accurate and consistent control of salt solution concentration, spray rate, chamber temperature, and humidity levels.
Durable Construction: Robust, corrosion-resistant materials and design for long-term reliability and consistent test conditions.
Comprehensive Monitoring: Integrated sensors and data acquisition systems for real-time monitoring and recording of test parameters.
User-Friendly Interface: Intuitive control system for easy programming and operation of test cycles.
Safety Features: Incorporated safety mechanisms to protect personnel and equipment.

Specifications

Model	SSC60	SSC90	SSC120	SSC160	SSC200
Carrier Dimensions(cm) (L x W x H)	60×45×40	90×60×50	120×100×50	160×100×50	200×100×60
Exterior Dimensions(cm) (L x W x H)	105×65×115	140×85×130	200×135×145	240×125×145	280×125×155
Test room temperature	Salt water test method (NSS ACSSS) 35°C±1°C; Corrosion test method (CASS) 50°C±1°C
Pressure barrel temperature	Salt water test method (NSS ACSSS) 47°C±1°C; Corrosion test method (CASS) 63°C±1°C
Volume (L)	108	270	480	800	1000
Salt water volume (L)	15	25	40	40	40
Brine concentration	Add 0.26 grams of copper chloride per liter to 5% concentration sodium chloride solution or 5% concentration sodium chloride solution
Compressed air pressure (Kgf)	1.0 - 6.0
Spray amount	1.0 - 2.0ml/80cm²/h (collect at least 16 hours, average value)
Spray method	Continuous or Programmable
Power supply	AC220V±10% 50/60Hz
Weight (kg)	65	80	120	160	200

Applications:

Testing automotive coatings (paint, plating, etc.).
Evaluating the corrosion resistance of metallic components.
Assessing the performance of protective films and treatments.
Quality control and validation for automotive materials and parts.
Research and development of corrosion-resistant materials.

Benefits:

Accurately predicts the long-term corrosion resistance of automotive materials.
Identifies potential weaknesses and vulnerabilities to corrosion.
Enhances product durability and lifespan.
Meets stringent automotive industry testing standards.
Reduces the risk of warranty claims and corrosion-related failures.

Benefits:

Ensures the reliable operation of military and defense equipment in harsh environments.
Identifies potential vulnerabilities to sand and dust ingress.
Enhances product durability and lifespan.
Meets stringent military testing standards.
Reduces the risk of in-field failures and maintenance costs

Why Choose Us:

We specialize in designing and manufacturing customized corrosion test chambers for the automotive industry. Our salt spray test chambers are built to the highest standards of quality and performance, ensuring accurate and reliable testing results for your critical automotive components.

Contact our expert team today to discuss your specific automotive corrosion testing requirements and discover how our customized salt spray test chambers can provide the ideal solution for your needs.

,
