Combined Environmental Test Chambers Perform Specific Temperature Humidity and Vibration Tests

Brand Name:	PRECISION
Model Number:	THV-20
MOQ:	1
Price:	$20000
Payment Terms:	T/T
Supply Ability:	100/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Customized Support:

OEM ODM

Origin:

China

Material:

Stainless Steel

Controller:

Programmable LCD Touch Screen

Temp Accuracy::

0.5°C

Temp Uniformity:

0.5°C

Refrigerant:

Environmental Friendly R23/R404

Packaging Details:

Standard export packaging

Supply Ability:

100/month

Highlight:

Multi Factor Climatic Chamber

Humidity Climatic Chamber

Vibration Temperature Humidity Climatic Chamber

Product Description

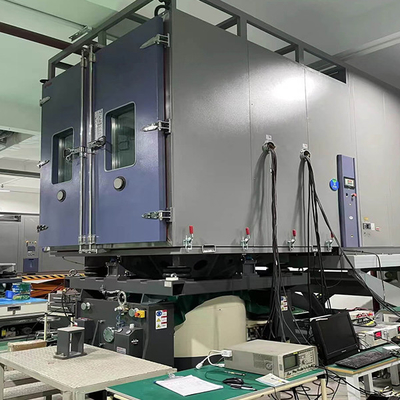

Combined Environmental Test Chambers Perform Specific Temperature Humidity and Vibration Tests

In the complex world of product development and quality assurance, ensuring the reliability of products across diverse environmental conditions is a non - negotiable aspect. Our Combined Environmental Test Chambers are engineered to perfection, offering a comprehensive solution for conducting highly specific temperature, humidity, and vibration tests.

Precision in Environmental Simulation

Temperature Control

Our test chambers are equipped with advanced heating and cooling systems that enable precise temperature regulation. The temperature range typically spans from an extremely cold - 70°C to a sweltering + 180°C. This wide spectrum allows for the simulation of a vast array of environmental conditions, from the frozen landscapes of the Arctic to the scorching deserts. The temperature uniformity within the chamber is maintained at an impressive ±1.0°C. This means that regardless of the position of the test sample inside the chamber, it will be exposed to the exact same temperature, eliminating any potential variations that could skew test results. The temperature deviation is kept to a minimum, at ±0.5°C, ensuring highly accurate temperature control for reliable and repeatable tests.

Humidity Control

Humidity is a crucial environmental factor that can significantly impact the performance of many products. Our chambers can precisely control humidity levels, ranging from a dry 10%RH to a humid 98%RH. This wide humidity range is essential for testing products that are sensitive to moisture, such as electronics, pharmaceuticals, and certain types of packaging materials. The humidity control system ensures a high degree of uniformity, with a uniformity of ±2.5%RH. This guarantees that all parts of the test sample are exposed to the same humidity conditions, leading to consistent and accurate test results. The humidity deviation is tightly controlled at ±3%RH, providing a stable and reliable humidity environment for testing.

Vibration Simulation

The vibration capabilities of our combined environmental test chambers are equally remarkable. They can generate vibrations within a wide frequency range, usually from 5Hz to 2000Hz. This broad frequency spectrum allows for the simulation of various real - world vibration scenarios. For example, the low - frequency vibrations around 5 - 50Hz can mimic the vibrations during transportation in a vehicle, while the higher frequencies up to 2000Hz can replicate the vibrations caused by industrial machinery or the operation of internal components in some products. The vibration amplitude is fully adjustable, with a maximum displacement of up to ±25mm (peak - to - peak), enabling the application of the exact vibration stress levels required for different test requirements. Moreover, our chambers support multi - axis vibration testing, typically in the X, Y, and Z axes. This multi - axis functionality provides a more realistic simulation of the complex vibration patterns that products may experience in their actual usage environments.

3. Specific Parameters

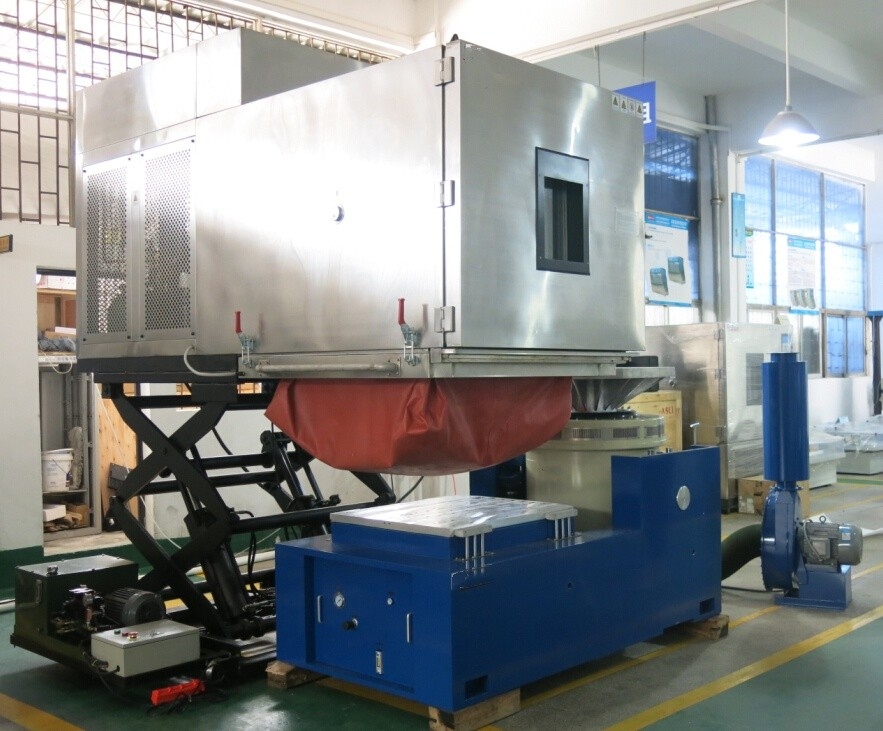

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m³/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm²
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

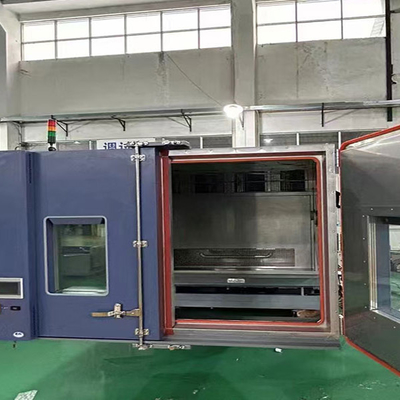

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH
Overall Dimensions	1200×2500×1500 (W width × D depth × H height mm) excluding lifting table dimensions
Weight	1500kg

Benefits of Combined Testing

Real - World Scenario Replication

By combining temperature, humidity, and vibration tests in a single chamber, our systems can accurately replicate the real - world conditions that products will encounter. For instance, a smartphone being tested in our chamber can be subjected to the temperature and humidity changes it might experience during a day in a tropical region while simultaneously being vibrated to simulate the movement in a user's pocket or bag. This comprehensive testing approach helps in identifying potential failures that may occur due to the combined effects of these environmental factors, which might not be detected if the tests were conducted separately.

Time and Cost Efficiency

Performing multiple tests separately can be time - consuming and costly. Our combined environmental test chambers streamline the testing process. Instead of running individual temperature, humidity, and vibration tests, manufacturers can conduct all these tests simultaneously. This not only saves a significant amount of time but also reduces the overall cost associated with testing equipment, labor, and facility usage. It allows for faster product development cycles and more efficient resource utilization.

Applications Across Industries

Electronics Industry

In the electronics industry, where components are getting smaller and more sensitive, our combined environmental test chambers are indispensable. Printed circuit boards, microchips, and consumer electronics like laptops and smartwatches are tested to ensure they can withstand the rigors of different environmental conditions. By subjecting these products to combined temperature, humidity, and vibration tests, manufacturers can identify and address potential issues such as solder joint failures, corrosion of components, or malfunctioning of electronic circuits due to environmental stress.

Automotive Sector

Automotive manufacturers use our test chambers to test a wide range of components, including engines, transmissions, and in - car electronics. The ability to simulate the vibrations, temperature variations, and humidity levels experienced during driving on different terrains and in various weather conditions helps in improving the durability and performance of vehicles. For example, testing car infotainment systems in a combined high - temperature, high - humidity, and vibrating environment can reveal potential issues with display readability or system malfunctions, leading to enhanced user experience.

Aerospace and Defense

In the aerospace and defense sectors, where the reliability of equipment is a matter of safety and mission success, our combined environmental test chambers play a crucial role. Components for aircraft avionics, military communication devices, and missile guidance systems are tested under extreme environmental conditions. The ability to replicate the high - altitude low - temperature conditions, intense vibrations during flight or missile launch, and high humidity in tropical regions ensures that these critical components function flawlessly in the most challenging situations.

If you are looking for a reliable, efficient, and comprehensive solution for conducting temperature, humidity, and vibration tests, our Combined Environmental Test Chambers are the ideal choice. Contact us today to discuss your specific testing requirements and let us help you enhance the quality and reliability of your products.
