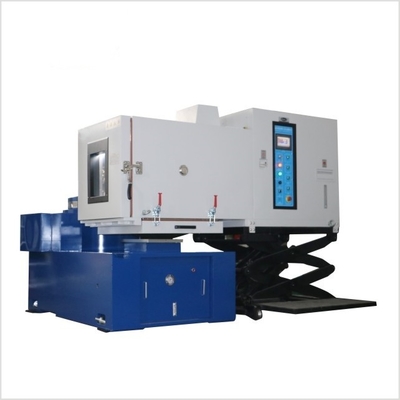

UN 38.3 Compliant AGREE Vibration Test Chamber for Lithium Battery Testing

Brand Name:	PRECISION
Model Number:	VTHC-225
MOQ:	1
Price:	$6000
Payment Terms:	T/T
Supply Ability:	100/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

ISO

Safety Features:

Over-temperature Protection, Over-current Protection, Phase Sequence Protection

External Dimensions:

W 1500 Mm X D 1500 Mm X H 1800 Mm

Insulation Material:

Polyurethane Foam

Humidity Range:

10% To 98% RH

Temperature Range:

-70°C To +180°C

Certifications:

CE, ISO 9001

Power Supply:

AC 220V, 50/60Hz

Control System:

PID Microprocessor Controller

Chamber Material:

Stainless Steel

Display:

LCD Touch Screen

Vibration Frequency Range:

5 Hz To 3000 Hz

Packaging Details:

Standard export packaging

Supply Ability:

100/month

Highlight:

Lithium Battery Vibration Test Chamber

UN 38.3 Compliant Vibration Test Chamber

Agree Vibration Chambers for Lithium Battery

Product Description

AGREE Vibration Test Chamber for Lithium Battery Testing UN 38.3 Compliant

Product Description:

Our AGREE vibration test chambers are specifically designed for the rigorous testing of lithium batteries, ensuring compliance with the UN 38.3 transportation standard. These chambers combine precise temperature, humidity, and high-performance vibration capabilities to simulate the extreme environmental conditions lithium batteries may encounter during transportation and usage. This comprehensive testing ensures the safety and reliability of your batteries.

Key Features:

UN 38.3 Compliance: Engineered to meet the stringent requirements of the UN 38.3 transportation standard.
Integrated Environmental & Vibration Testing: Combines precise temperature, humidity, and vibration testing in a single system.
High-Performance Vibration: Advanced electro-dynamic or hydraulic shakers for accurate and repeatable vibration simulation.
Precision Environmental Control: State-of-the-art temperature and humidity systems for stable and uniform testing conditions.
Customizable Vibration Profiles: Flexible software for creating complex and customized vibration profiles.
Real-Time Data Acquisition: Comprehensive data logging and analysis capabilities.
Robust Safety Features: Multiple safety interlocks and monitoring systems for secure testing.
Modular Design: Facilitates easy installation, maintenance, and system upgrades.

3. Specific Parameters

Shaker Specifications

Rated Sine/ Random/ Shock Force	1,100 kgf/1,100 kgf/2.200 kgf	Armature Mass	11kg
Frequency Range	5-3.000 Hz	Inserts Size (Standard)	M8
Max./Continuous Displacement p-p	51 mm/ 51 mm	Load Attachment Points (Standard)	17
Max. Velocity	2.0 m/s	Natural Frequency-Thrust Axis	<3Hz
Max.Sine/ Random Acceleration	100/60g	Mac Vertical Load Support	300 kg
Armature Diameter	235 mm	Stray field @ 152 mm above table	≤1mT (10 gauss)
Fundamental Resonance frequency	2,500 Hz (nom.) ± 5%	Dimension LxWxH	940 mmx715 mmx780 mm
Allowable Armature Overturning Moment	300 Nm	Weight (Uncrated)	1.000 kg

PA10K Power Amplifier Specifications		Blower Specifications
Rated Output Capacity	10kVA	Bl ewer Power	4kW
Signal to Noise Ratio	≥65 dB	Air Flow	0.38 m³/s
Amplifier Efficiency	≥90%	Air Pressure	0 048kgf/cm²
System Protection	Multiple	Air Duct Diameter/ Length	120/4000mm
Dimension (Uncrated) LxWxH	610mmx900mmx 1,550mm	Dimension (Uncrated) LxWxH	610mmx750mmx 1,450mm
Weight (Uncrated)	400 kg	Weight (Uncrated)	120Kg

Chamber	Dimensions (mm)
Capacity	512L
Inner Chamber Dimensions	800×800×800mm (W width × D depth × H height mm)
Temperature Range	-40℃～+150℃
Cooling Rate	+20℃～-40℃ Average throughout the range: 2℃/min
Humidity Range	20%RH～98%RH

UN 38.3 Compliant AGREE Vibration Test Chamber for Lithium Battery Testing 0

Applications:

Lithium battery transportation safety testing
Electric vehicle (EV) battery testing
Portable electronic device battery testing
Energy storage system battery testing
Environmental stress screening (ESS)
Reliability testing

Benefits:

Ensures compliance with UN 38.3 transportation standards.
Enhances the safety and reliability of lithium batteries.
Accelerates product development and validation processes.
Reduces the risk of failures in real-world applications.
Provides comprehensive and integrated testing solutions.

Why Choose Us:

We specialize in providing high-quality environmental and vibration testing solutions for the lithium battery industry. Our AGREE vibration test chambers are designed and manufactured to the highest standards, ensuring reliable and accurate testing results. We offer comprehensive support, including design, installation, and ongoing maintenance.

Contact our expert team today to discuss your specific lithium battery testing requirements and discover how our AGREE vibration test chambers can optimize your testing processes for UN 38.3 compliance.
